Opti-mize HE Pro 3D video borescope
The Opti-mize HE Pro 3D Video Borescope sets a new standard in precision inspection. With advanced binocular 3D measurement, HD imaging, and a modular probe system, it delivers unmatched accuracy in hard-to-reach or hazardous areas. Its 360° joystick control, bright touchscreen, and enhanced defect-highlighting features make inspections faster, clearer, and more reliable—perfect for professionals who demand the highest level of detail and performance. Read more in the brochure
Description
The Opti-mize HE Pro 3D Video Borescope is an advanced inspection system featuring independently developed 3D measurement technology. As one of the first of its kind, it integrates high-definition optics, precision engineering, electronics, and binocular photogrammetry to deliver exceptional accuracy, reliability, and stability. Designed to inspect areas that are difficult or unsafe for human access, it enables precise detection and measurement to meet a wide range of professional inspection needs.
HD Image Processing System
Featuring a responsive touchscreen, 720P high-definition imaging, and a high-sensitivity CMOS sensor, the system delivers sharper visuals and more accurate measurement results.

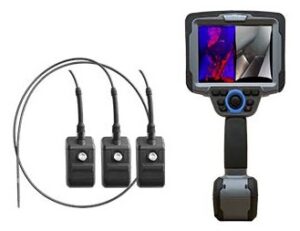

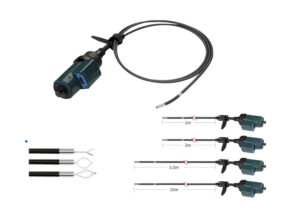

Multi-Handle Configuration
The modular design supports interchangeable probes, allowing users to select the ideal probe for each inspection scenario—providing greater flexibility, convenience, and cost efficiency.

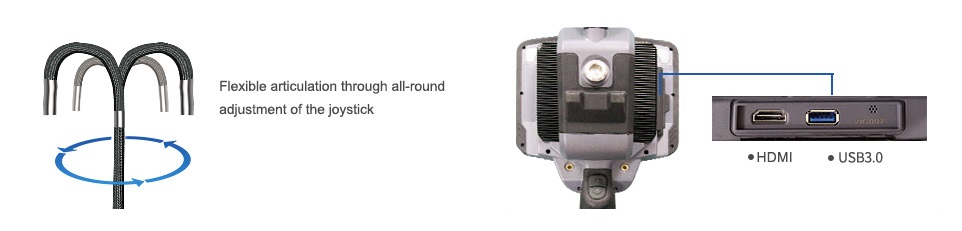

Flexible Operation
A 360° joystick enables smooth and precise articulation control, making operation easy and intuitive. HDMI output ensures high-resolution images and video can be displayed on external monitors with clarity.
Product Features
● Binocular lenses with megapixel HD resolution, high-sensitivity CMOS sensor, and automatic light adjustment
● Bright, high-definition touchscreen display for clear, detailed imaging
● Modular system for easy probe replacement and enhanced portability
● Multiple measurement modes including point-to-point, point-to-line, point-to-surface, curve, and more
● High-definition binocular 3D modeling delivers superior measurement accuracy

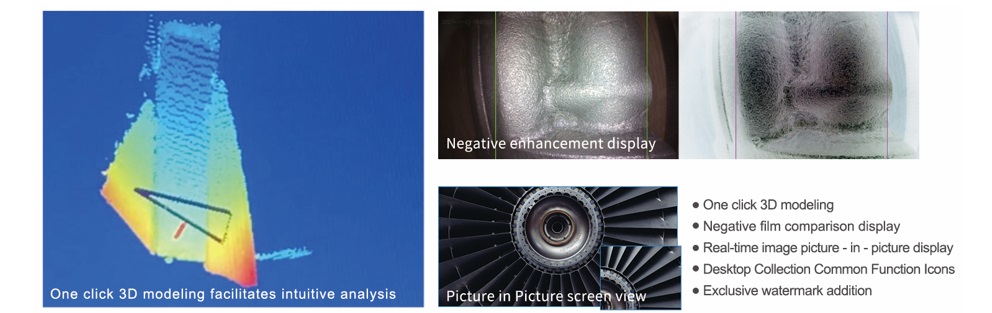

● Enhanced defect visualization with negative-film display and color-rendering highlight functions

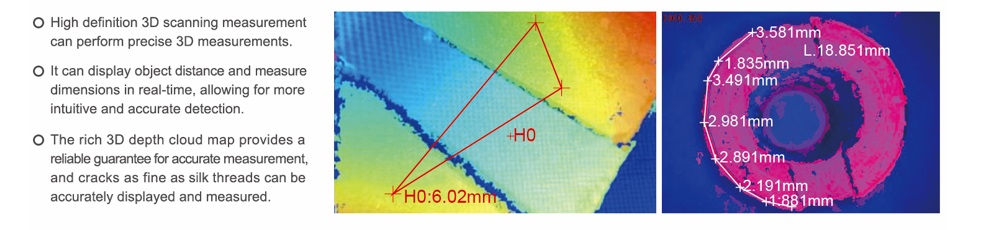

Accurate measurement function
